Emergency Power-Disconnect Button

Eteny4 Comments

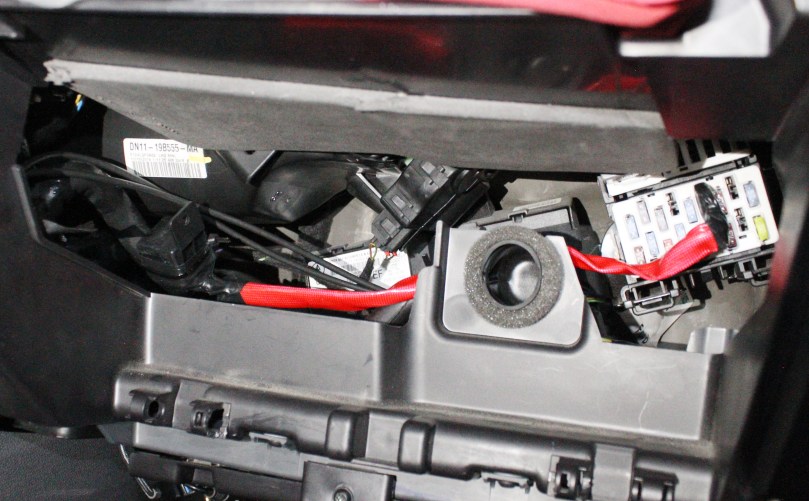

I have integrated a centralized Emergency Power-Disconnect Button to my EcoSport’s gadgets and accessories. Placed near the handbrake for easy access, I can immediately (in an emergency) power-down all my equipment with the press of a button. The switching is done with the use of a powerful 40 A relay operated at 10 A.

I’ll be posting soon a diagram on how to connect the relay to the EcoSport’s fuse box.


To view all EcoSport tutorial videos, click here.
To subscribe and receive posts about our beloved EcoSport, click here.

ECOSPORT DIY SERIES
Isa na namang kaalaman sa ating minamahal na EcoSport
© Anthony Urbano (Manila, Philippines)

4 thoughts on “Emergency Power-Disconnect Button”

  1. I want the 12v port to be on only in the acc or on position of the key and not to be always on as ecosport’s default. How is this done?

    Like

    Reply
